Dual Power Automatic Transfer Switch

Place of Origin : China

MOQ : 5pcs

Certification : CE

Model Number : AZATS-W8

Payment Terms : T/T

Contact Now

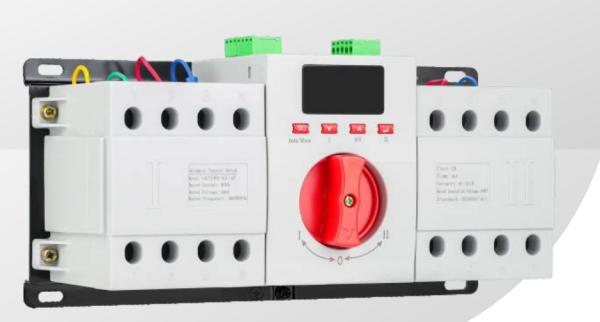

AZATS-W8 Dual Power Automatic Transfer Switch

The dual power automatic transfer switch is composed of two micro circuit breakers with two poles,three poles or four poles,mechanical interlocking transmission mechanism,built-in controller,etc.

Its characteristics are:

Small in size and simple in structure; Easy to operate and long service life;

The switch switching drive adopts a single motor drive, which is stable, noiseless,and has low impact force;

Equipped with mechanical and electrical interlocking,reliable switching, both manual and automatic can be switched;

A.T.S is equipped with wiring terminals for users to connect and reflect the statusof thecircuit breaker (openor closed);

A. There are various status indicators set on the T.S panel.

2P, 3P, and 4P are all available;

Product current: 10, 16, 20, 25, 32, 40,50, 63A;

Dual Power Automatic Transfer Switch

Dual Power Automatic Transfer Switch Images
